  1. PRODUCT REFERENCE
  2. Quick Product Introduction

Preparing the Browser Proxy

PreviousQuick Product IntroductionNextSetting up the Proxy in the Browser

Last updated 4 months ago

The first step in our example is to prepare the browser proxy so that all traffic to and from Google is successfully routed via the Composable Agentic Platform Proxy Server. This will give us visibility of the data and provide all of the information we need to manipulate it.

Many browsers have in-built security features to prevent user access to websites whenever there is an untrusted SSL certificate, and will block the incoming request without exception

In our example, because it is not possible to install Google’s SSL certificate to the Proxy Server, overcome this by using redirection settings within the Proxy Server. In Administration, Server Definitions click on the Proxy Server as follows.

Click on the Forwarding tab and set the Request redirection properties for Google as follows. Our example is for a UK IP address request, which follows the redirect of Google.com to Google.co.uk based upon the IP geolocation from the originating browser.

The first line entry is for example format use only and has no impact on the Proxy Server:

  • http://thishost>http://thishost:8001

  • http://google.com>https://google.com

  • http://www.google.com>https://www.google.com

  • http://google.co.uk>https://google.co.uk

  • http://www.google.co.uk>https://www.google.co.uk

Once you have input the redirection settings, scroll to the bottom of the page and save the modified Proxy Server definition.

The Proxy Server will now successfully route the http to https protocol redirection and allow the browser to access the website even without a correct SSL certificate.

Next, deploy a configuration to the Proxy Server. The configuration we will use in this example is the one named BasicWebTrial, which is under Configurations->Product Trial in the administration tree:

When you click on it, you will be presented with a number of options:

At this stage we are not going to make any changes to the configuration, only the changes made earlier to the Proxy Server server definition.

So now deploy it and start the Proxy Server by clicking on Deploy.

You will see a choice of servers you can deploy to:

Select the Proxy Server as shown, check Restart immediately and then click Deploy. You will then see the action window switch to the server view showing the configuration and all of its dependencies being deployed to the proxy:

Once complete, you will see that the Proxy Server is started and ready to use:

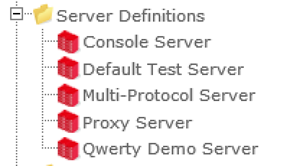

Server Definitions folder

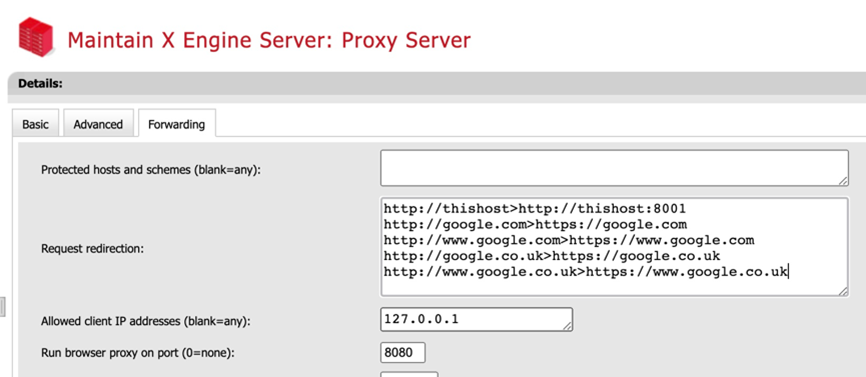

Proxy Server, Forwarding tab
Save button

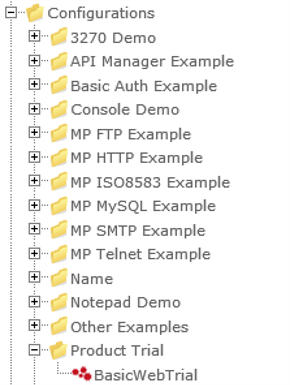

Configurations tree
General tab for Product Trial repo

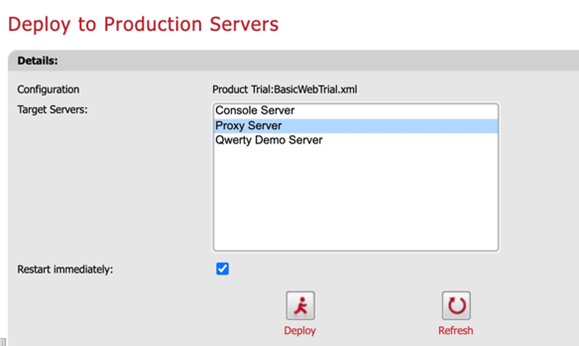

Deploy window

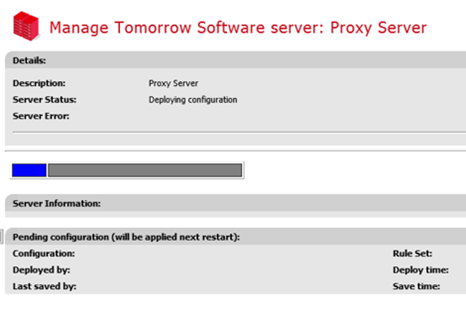

Proxy Server while deploying

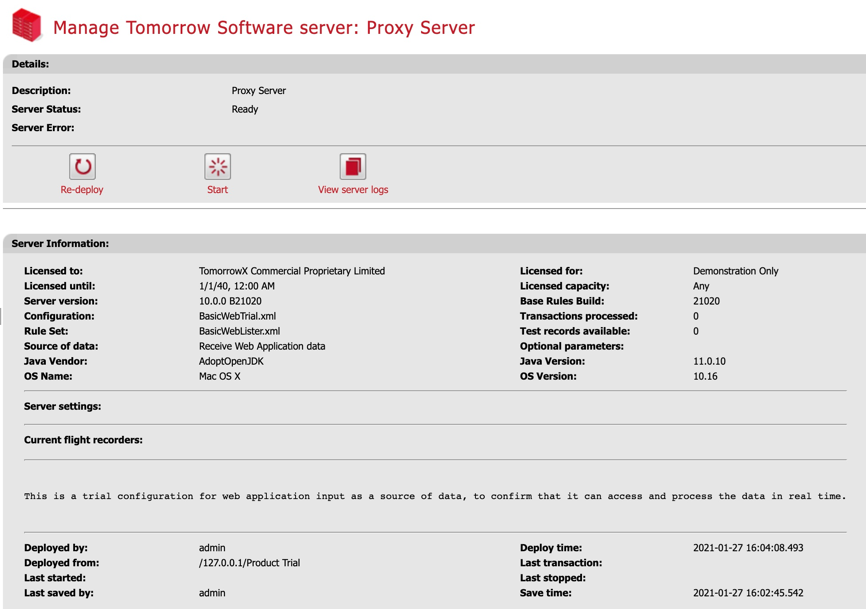

Proxy Server details after deployment
