Console Server Type Configuration

The Composable Architecture Platform Server installation is a complete product set including sample applications. At times you may wish to remove components that you don’t use in a given installation. The easiest way to do this is by changing the server type in the console setup:

Administration folder

Settings

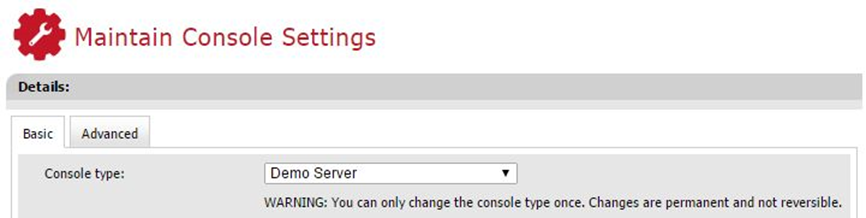

You can only change the server type once as it involves deleting several components in the server structure. There are 5 different Console types to select from as shown below:

The effect of changing the Console type is as follows:

Type	Effect
Demo Server	None
Console only	All applications (including the forwarding proxy) are removed from the server. The only items left are the console itself and the test server.
Forwarding Proxy with console	All demo applications are removed. The only remaining items are the console, the proxy and the test server.
Forwarding Proxy without console	All demo applications as well as the console and the test server are removed. The only remaining active item is the proxy.
Cluster Slave Console	All demo applications and the forwarding proxy are removed. All repositories are removed, and the data folder is cleaned.
