  1. PRODUCT REFERENCE
  2. Architectural Scenarios

API Transformation

PreviousServlet FilterNextActive Web Proxy

Last updated 4 months ago

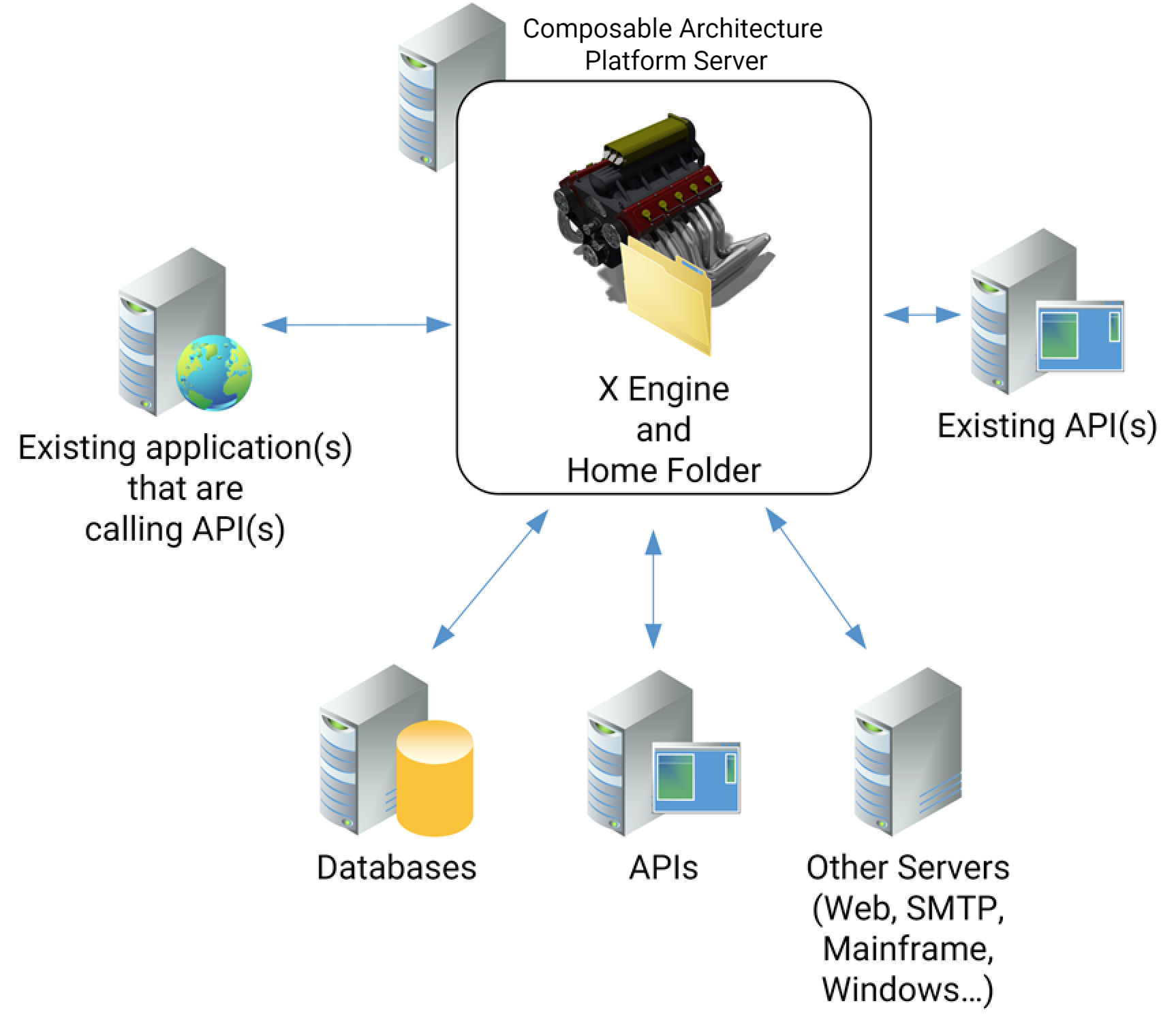

In this scenario the X Agent is installed alongside the Composable Agentic Platform Application Server and they work as an integrated whole, turning the X Agent into a high-performance HTTP proxy with the ability to provide SSL termination and on the fly transformation of requests and responses between the existing applications and the existing APIs.

Use cases for this approach include:

  • Vendor abstraction, which provides the ability to create generic APIs for things such as text messages, geo-location, two-factor authentication and use those APIs in the existing applications instead of vendor specific APIs

  • API Sunsetting, where the X Agent is capable of transforming the structure of an API call between different versions, such as to facilitate the removal of older version code from the API server source code

  • API Accounting, enabling chargeback of API calls that have a monetary cost to the respective users of that API

Graph
