  1. PRODUCT REFERENCE
  2. Architectural Scenarios

Simplest Form

PreviousCommand and ControlNextServlet Filter

Last updated 4 months ago

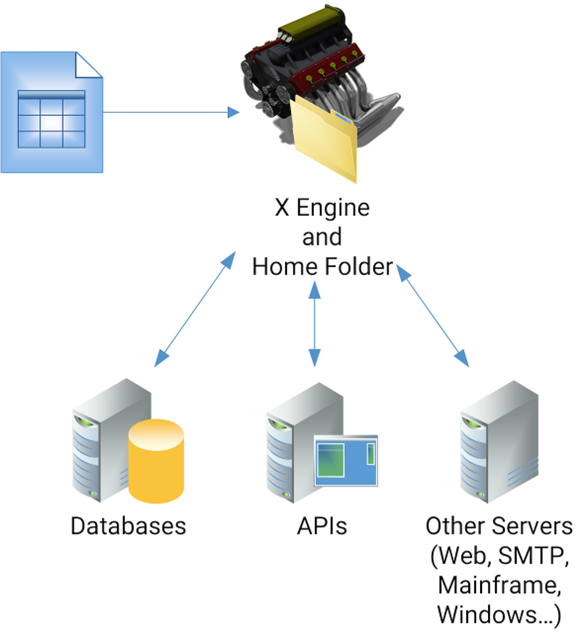

In its simplest form, the X Agent receives data from a file (CSV, XML, Spreadsheet) and processes it by interacting with databases, APIs or other servers.

The X Agent in this form requires very little other than a software platform with Java and the X Agent core installed, a configuration file and a home folder. Upon deployment of rules, the console will deploy all other required dependencies along with the rules.

Graph
