  1. PRODUCT REFERENCE
  2. Architectural Scenarios

Asynchronous Multi-Protocol

PreviousMobile Application ServerNextData Loss Prevention Architecture

Last updated 4 months ago

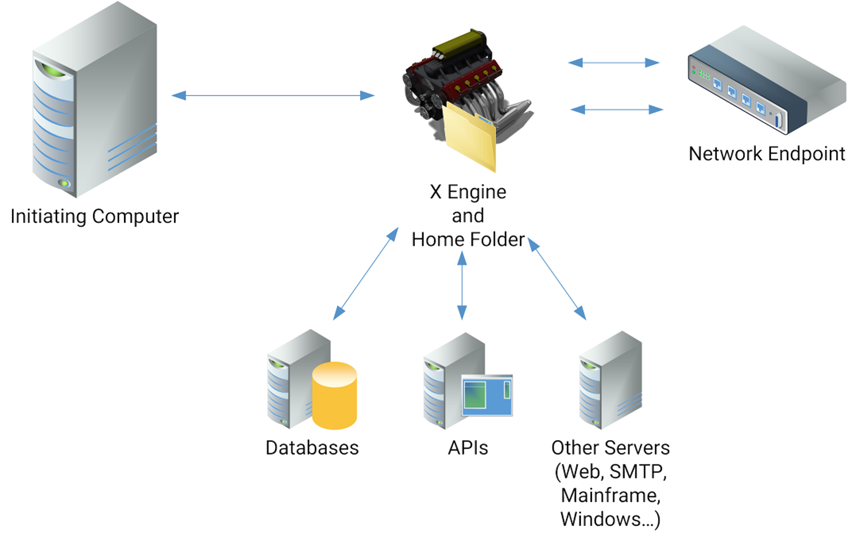

The Asynchronous multi-protocol scenario operates at the network packet layer and expands the reach of the X Agent from HTTP into other protocols. TCP and UDP packets are supported.

To facilitate this approach a secondary protocol level engine breaks down the packet into elements the main X Agent can understand. The X Agent can then modify these elements and the underlying protocol packet will be changed accordingly. The X Agent is then able to forward the modified package to the designated network endpoint and can even in some instances commence a chat with the endpoint before forming a response packet for the initiating computer. As always, the X Agent can rely on secondary data sources (APIs, data, other systems) to help form the modified request and response packets.

Use cases for this scenario includes:

  • Database field level security

  • ATM stand-in

  • SCADA security

  • Advanced DNS

  • … and many more

Graph
