Viewing the Complete Performance Report

The complete performance report is available when the performance collection level is set to "All counters". The full report includes all of the statistics described in the previous sections, plus a URI level report and database pool statistics

The database pool report provides a view of the size of the database pool and the number of live connections (connections handed out to the Programmable Data Agent), spaced out over the life of the Programmable Data Agent. The timeline will compress depending on the time the Programmable Data Agent has been running.

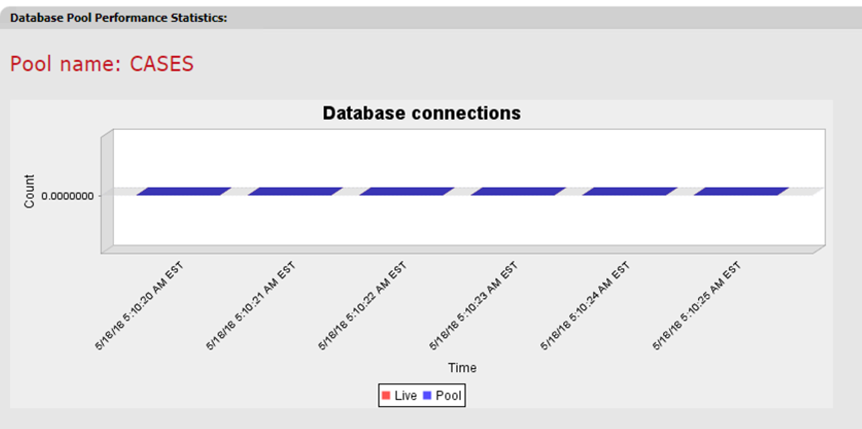

Visualization for Cases

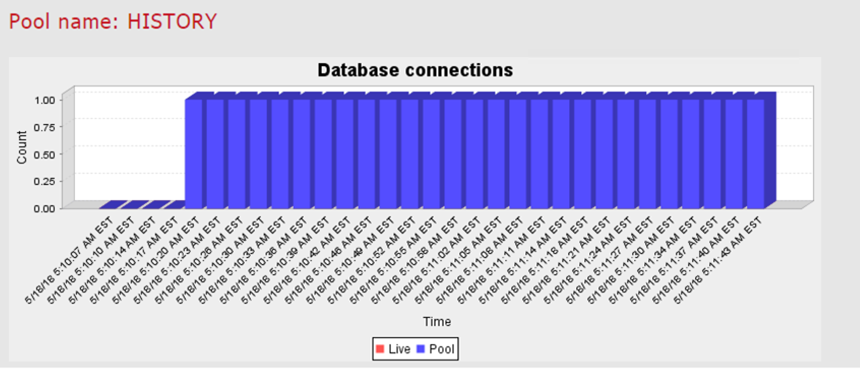

Visualization for History pool

The URI level report is divided into 2 sections. The first section provides a summary of the highest Programmable Data Agent delays measured for each URI in descending order from the highest to the lowest. This measurement does NOT include the very first transaction for each URI. It is a useful measure to quickly identify rule set hot-spots in very large rule sets.

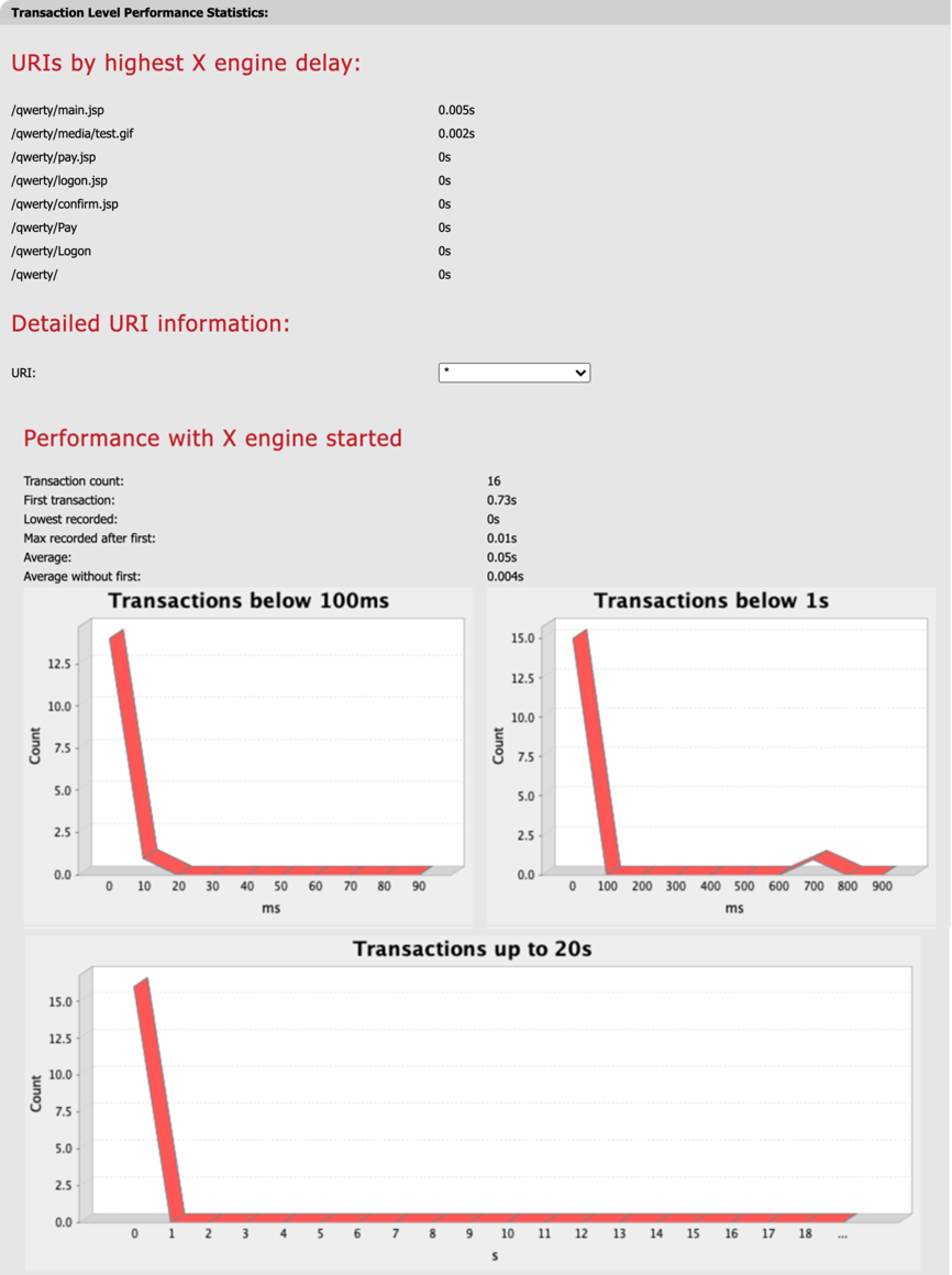

Transaction Level Performance Statistics

The second section provides a quick view of individual URI response times (or all URIs combined if "*" is selected). There are up to three of these distribution diagrams:

1. Performance with Programmable Data Agent stopped. This diagram is only present if data has been collected with the Programmable Data Agent stopped. This can be achieved by stopping a configuration and continuing to undertake transactions.

2. Performance with Programmable Data Agent started. This diagram provides information about the combined delay of the application and the Programmable Data Agent.

3. Performance of Programmable Data Agent alone. This diagram provides information about the Programmable Data Agent alone. Application response times are automatically deducted from the result. However, any calls to external services or databases are still included.
