Conjoined Performance and Trace data

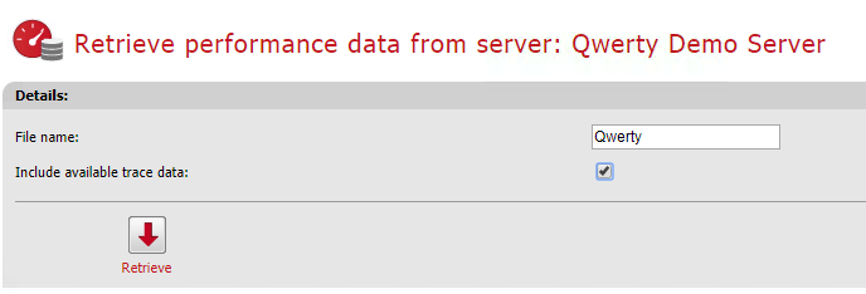

For complex debugging, it can at times be easier to conjoin performance views with trace data. To do this, download the performance data after a trace has been started. You will receive the option to include the trace:

Retrieve trace

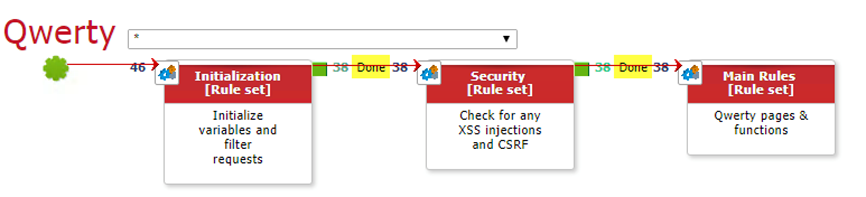

The result of doing this is a new list box showing up in the performance view, immediately after the rule name:

Qwerty rule set

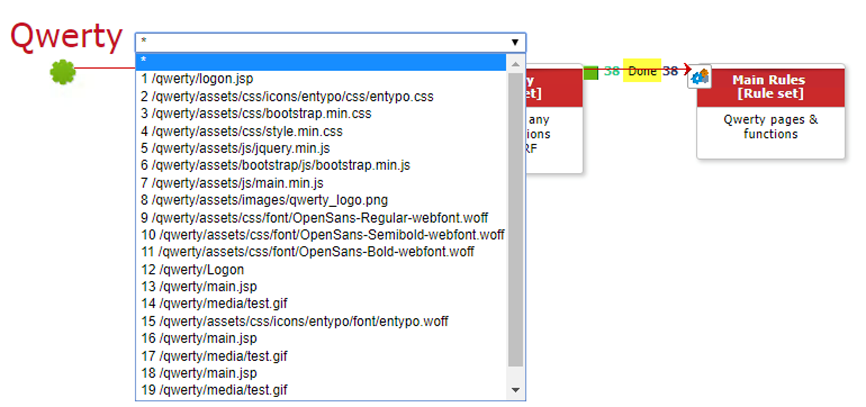

The list box offers either the regular performance data or a view by transaction:

list box

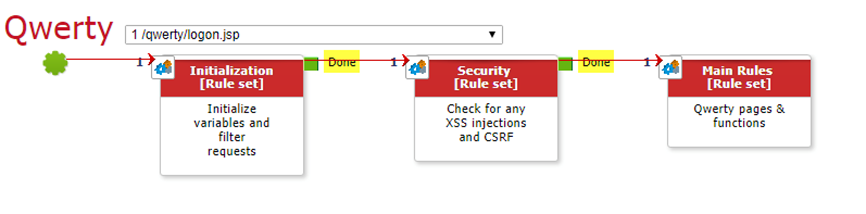

For assistance, the URI variable used by almost all input adaptors is displayed to help determine a relevant transaction. Once a transaction is selected, the performance display will change:

Selected transaction

You are now only seeing the entry count for each rule (for data volume reasons, exit points are not shown).

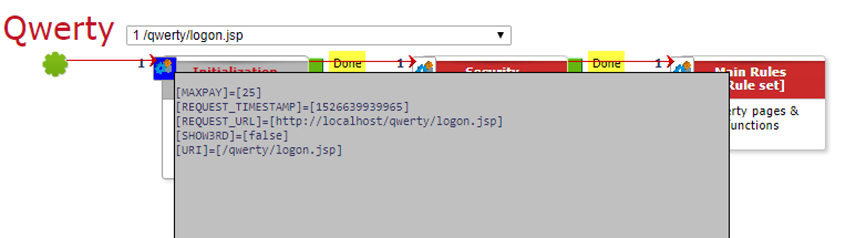

At any point you can now see the state of the variables at each entry point, simply by clicking on it:

state of variables

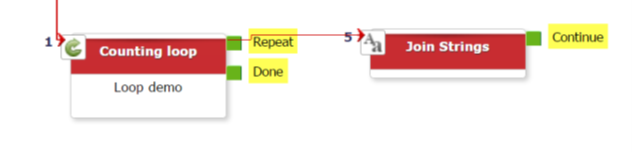

If you have loops in your rule sets, more than one transaction can be seen at the entry point of a rule:

Loop in the rule set

Clicking on that entry point allows you to iterate through each invocation, one by one:

Iterate through each invocation
